frames (ribs) on building jig ..July 2011

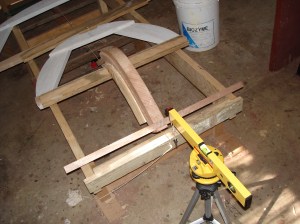

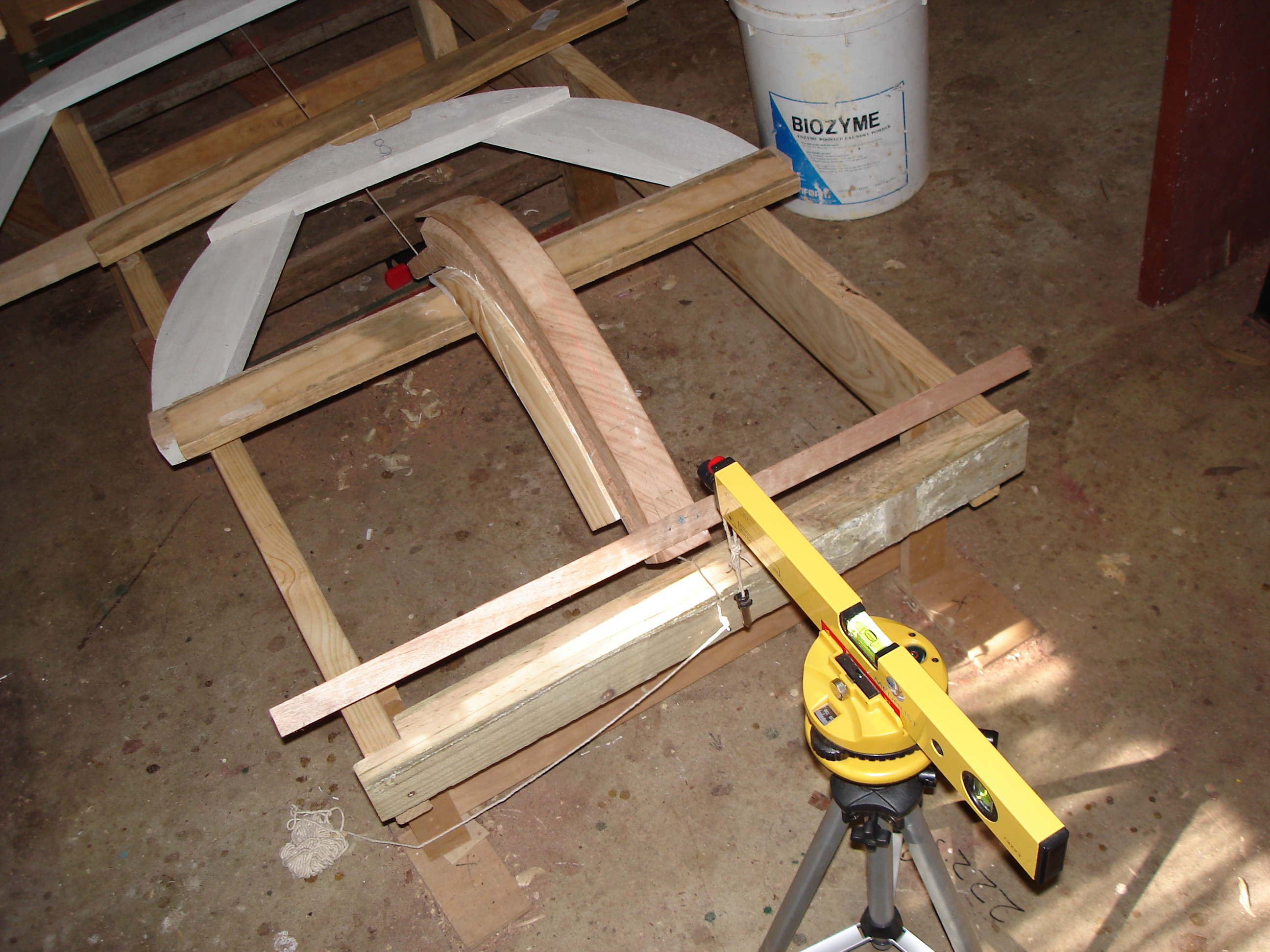

Lining up the frames on the building jig

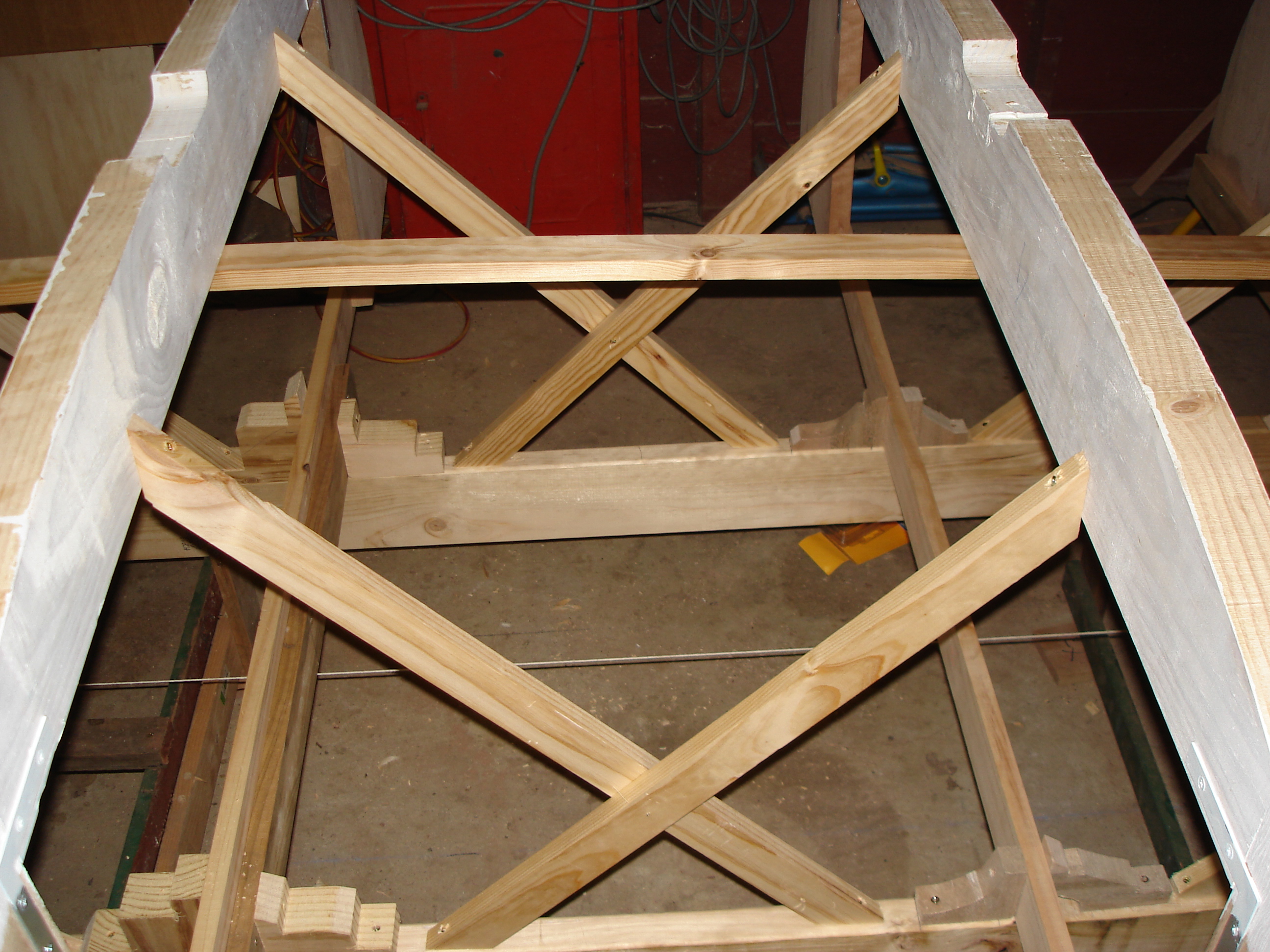

in place and attached and braced to the building jig

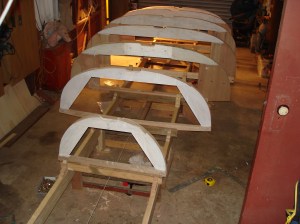

The frames are set up and fastened to the level building jig. Each frame sits on the jig at a different height to allow for the sheer of the boat. (Its longitudinal curvature). Each frame is braced onto the jig in several directions.
